AC220
2500 r/min
200 / 400W
5.5kg
CW / CCW
50cm – 50db
-15。C~60。C / RH85%↓
IP545
E
500V/3mA – 60sec
10MΩ>
6RG
High-Strength Gearhead match high-speed and high-output of brushless motor.
- Long Life
improving the strength of gears through heat treatment, uses a special bearing and grease for high speed rotation. A rated life of 10000 hours is achieved.
- High-Strength
larger bearing diameters and improving the strength of gears. The high permissible torque is 2 ~ 3 times that of a gearhead for an AC motor with the same frame size, and this contributes to reducing the size of equipment.
Rated voltage
Rated R.P.M
Rated output power
Weight
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
Rated R.P.M
Rated output power
Weight
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
| AC220V | |||
Driver system match |
DBC220V | ||
Rated R.P.M |
r/min | 2500 | |
Max speed |
r/min | 3000 | |
Rated out put |
W | 200 | |
Rated torque |
N/m(kgf-cm) | 0.65 (6.5) | 1.3 (13) |
Start torque |
N/m(kgf-cm) | 1.3 (13) | 2.6(26) |
Speed control range |
r/min | 150~3000 | |
In put |
|||
Voltage |
V | AC220+_15% | |
Rated current |
A | 2.3 | 4 |
Max unput current |
A | 4.2 | 7.2 |
Rating of R.P.M fluctuation |
|||
Loading |
T | +_0.5% | |
Voltage |
A | 0.2~4%+_10% | |
Temperature |
。C | 0~3%(0~50。C) | |
| 2GS reduction ratio | 5 | 10 | 15 | 20 | 30 | 50 | 100 | 200 |
| Speed ratio | 20-600 | 10-300 | 6.67-200 | 5-150 | 3.34-100 | 2-60 | 1-30 | 0.5-15 |
| Rated torque Nm 200W | 2.9 | 5.9 | 8.8 | 11.7 | *16.8 | *28.0 | *52.7 | 70 |
| Rated torque Nm 400W | 5.9 | 11.7 | 17.6 | 23.4 | 33.5 | 55.9 | 70 | 70 |
| Max axis radial load(10mm from axis ) | 550 | 550 | 550 | 550 | 1000 | 1000 | 1400 | 1400 |
| Max axis radial load (20mm from axis ) | 800 | 800 | 800 | 800 | 1250 | 1250 | 1700 | 1700 |
| Permissible thrust force | 200 | 200 | 200 | 200 | 300 | 300 | 400 | 400 |
| Max Moment of inertia | 100 | 460 | 1000 | 1700 | 3900 | 9300 | 18000 | 37000 |
| Instantly stop or reverse | 37.5 | 150 | 338 | 600 | 1350 | 3750 | 3750 | 3750 |
* 30 / 50 Contrary to the directionof operation of the motor.

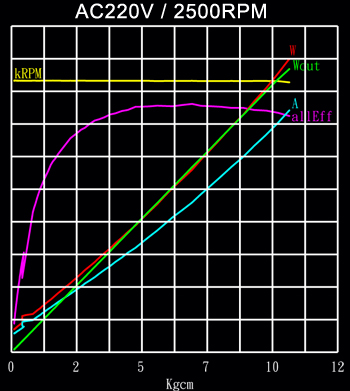

| Wout | Amp | Win | allEff | kRPM |
| 300.000 | 20.000 | 400.000 | 1.00 | 3.000 |
| 270.000 | 18.000 | 360.000 | 0.90 | 2.700 |
| 240.000 | 16.000 | 320.000 | 0.80 | 2.400 |
| 210.000 | 14.000 | 280.000 | 0.70 | 2.100 |
| 180.000 | 12.000 | 240.000 | 0.60 | 1.800 |
| 150.000 | 10.000 | 200.000 | 0.50 | 1.500 |
| 120.000 | 8.000 | 160.000 | 00.40 | 1.200 |
| 90.000 | 6.000 | 120.000 | 0.30 | 0.900 |
| 60.000 | 4.000 | 80.000 | 0.20 | 0.600 |
| 30.000 | 2.000 | 40.000 | 0.10 | 0.300 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |
