DC12 / DC24 / DC90 / DC180 V
2000 / 3200 r/min
60/ 100 W
2170 g
IG-80R / IG-80S
CW / CCW
50cm – 50db
-15。C~60。C / RH85%↓
IP545
E
500V/3mA – 60sec
10MΩ>
DM-5250
Rated voltage
Rated R.P.M
Rated output power
Weight
Gear head match
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
Rated R.P.M
Rated output power
Weight
Gear head match
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
| Motor Specifications | ||||||||||||||
| Rated voltage | V | 12 | 24 | 90 | 180 | |||||||||
| No load R.P.M | R.P.M. | 2000 | 3200 | 2000 | 3200 | 2000 | 3200 | 2000 | 3200 | |||||
| Rated power | W | 60 | 100 | 60 | 100 | 60 | 100 | 60 | 100 | |||||
| Stall torque | kgf-cm | 15.1 | 22.24 | 25.3 | 30.12 | 32.2 | 41 | 29 | 41 | |||||
| No load curent | A | 0.9 | 1.43 | 0.43 | 1.05 | 0.24 | 0.27 | 0.25 | 0.1 | |||||
| Starting current | A | 20.3 | 40 | 22.6 | 42.8 | 6.9 | 14.6 | 3.57 | 8.87 | |||||
| Max permisible speed | R.P.M. | 2400 | 3800 | 2400 | 3800 | 0.34 | 3800 | 2400 | 3800 | |||||
| Max. continuous current | A | 8.26 | 10.87 | 3.44 | 4.9 | 0.78 | 1.1 | 0.37 | 0.61 | |||||
| Max. continuous torque | kgf-cm | 5.2 | 4.03 | 3.48 | 3.5 | 3.3 | 3.46 | 3.54 | 3.32 | |||||
| Rated voltage max power | W | 90 | 150 | 90 | 150 | 90 | 150 | 90 | 150 | |||||
| Max efficiency | % | 73% | 78% | 72% | 80% | 80% | 92% | 90% | 90% | |||||
| Torque constant | kgf-cm/A | 0.64 | 0.39 | 1.10 | 0.67 | 4.53 | 2.53 | 1.80 | 4.18 | |||||
| Terminal resistance phase to phase | Ohn | 0.59 | 0.3 | 1.06 | 0.56 | 12.9 | 6.13 | 50.3 | 20.3 | |||||
| Terminal inductance between phase | Mh | 0.77 | 0.3 | 2.18 | 1.03 | 41.6 | 19.7 | 184.5 | 67.2 | |||||
| Speed constant | rpm/V | 166.6 | 266.7 | 83.3 | 133.3 | 22.2 | 35.6 | 11.1 | 17.8 | |||||

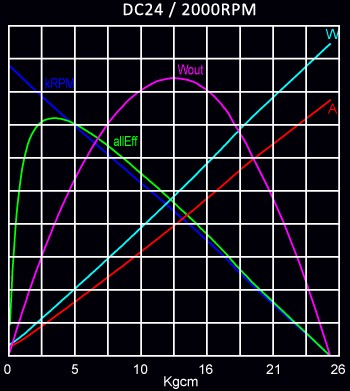

| Wout | A | W | allEff | kRPM |
| 160.000 | 30.000 | 600.000 | 1.00 | 2.300 |
| 144.000 | 27.000 | 540.000 | 0.90 | 2.070 |
| 128.000 | 24.000 | 480.000 | 0.80 | 1.840 |
| 112.000 | 21.000 | 420.000 | 0.70 | 1.610 |
| 96.000 | 18.000 | 360.000 | 0.60 | 1.380 |
| 80.000 | 15.000 | 300.000 | 0.50 | 1.150 |
| 64.000 | 12.000 | 240.000 | 0.40 | 0.920 |
| 48.000 | 9.000 | 180.000 | 0.30 | 0.690 |
| 32.000 | 6.000 | 120.000 | 0.20 | 0.460 |
| 16.000 | 3.000 | 60.000 | 0.10 | 0.230 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |
| Wout | A | W | allEff | kRPM |
| 360.000 | 18.000 | 1800.000 | 1.00 | 3.600 |
| 324.000 | 16.200 | 1620.000 | 0.90 | 3.240 |
| 288.000 | 14.400 | 1440.000 | 0.80 | 2.880 |
| 252.000 | 12.600 | 1260.000 | 0.70 | 2.520 |
| 216.000 | 10.800 | 1080.000 | 0.60 | 2.160 |
| 180.000 | 9.000 | 900.000 | 0.50 | 1.800 |
| 144.000 | 7.200 | 720.000 | 0.40 | 1.440 |
| 108.000 | 5.400 | 540.000 | 0.30 | 1.080 |
| 72.000 | 3.600 | 360.000 | 0.20 | 0.720 |
| 36.000 | 1.800 | 180.000 | 0.10 | 0.360 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |
