DC12 / DC24 / DC90 V
2000 / 3200 r/min
25 / 40 W
1240 g
IG-71R / IG-70S
CW / CCW
50cm – 50db
-15。C~60。C / RH85%↓
IP545
E
500V/3mA – 60sec
10MΩ>
DM-5030
Rated voltage
Rated R.P.M
Rated output power
Weight
Gear head match
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
Rated R.P.M
Rated output power
Weight
Gear head match
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
| Motor Specifications | ||||||||||||
| Rated voltage | V | 12 | 24 | 90 | ||||||||
| No load R.P.M | R.P.M. | 2000 | 3200 | 2000 | 3200 | 2000 | 3200 | |||||
| Rated power | W | 25 | 40 | 25 | 40 | 25 | 40 | |||||
| Stall torque | kgf-cm | 7.21 | 7.1 | 10.71 | 12.93 | 10.16 | 15.88 | |||||
| No load curent | A | 0.42 | 0.85 | 0.32 | 0.4 | 0.17 | 0.18 | |||||
| Starting current | A | 12.7 | 21.4 | 8.42 | 18.59 | 2.45 | 6.5 | |||||
| Max permisible speed | R.P.M. | 2400 | 3800 | 2400 | 3800 | 2400 | 3800 | |||||
| Max. continuous current | A | 3.24 | 5.45 | 1.45 | 2.1 | 0.39 | 0.55 | |||||
| Max. continuous torque | kgf-cm | 1.74 | 1.65 | 1.71 | 1.39 | 1.56 | 1.4 | |||||
| Rated voltage max power | W | 37.5 | 60 | 37.5 | 60 | 37.5 | 60 | |||||
| Max efficiency | % | 66% | 62.6% | 69% | 75% | 71% | 77% | |||||
| Torque constant | kgf-cm/A | 0.57 | 0.33 | 1.37 | 0.70 | 4.15 | 2.43 | |||||
| Terminal resistance phase to phase | Ohn | 2.03 | 2.33 | 3.28 | 1.48 | 35.5 | 15.1 | |||||
| Terminal inductance between phase | Mh | 1.42 | 0.53 | 7.55 | 2.28 | 120.4 | 45.6 | |||||
| Speed constant | rpm/V | 166.7 | 266.7 | 83.3 | 133.3 | 22.2 | 35.6 | |||||

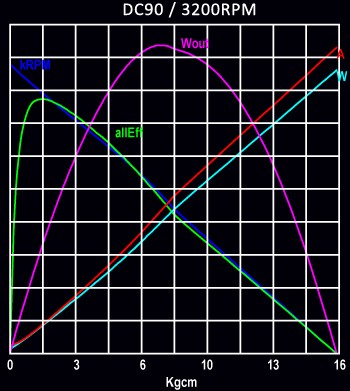

| Wout | A | W | allEff | kRPM |
| 50.000 | 9.000 | 300.000 | 1.00 | 2.000 |
| 45.000 | 8.100 | 270.000 | 0.90 | 1.800 |
| 40.000 | 7.200 | 240.000 | 0.80 | 1.600 |
| 35.000 | 6.300 | 210.000 | 0.70 | 1.400 |
| 30.000 | 5.400 | 180.000 | 0.60 | 1.200 |
| 25.000 | 4.500 | 150.000 | 0.50 | 1.000 |
| 20.000 | 3.600 | 120.000 | 0.40 | 0.800 |
| 15.000 | 2.700 | 90.000 | 0.30 | 0.600 |
| 10.000 | 1.800 | 60.000 | 0.20 | 0.400 |
| 5.000 | 0.900 | 30.000 | 0.10 | 0.200 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |
| Wout | A | W | allEff | kRPM |
| 140.000 | 7.000 | 700.000 | 1.00 | 3.600 |
| 126.000 | 6.300 | 630.000 | 0.90 | 3.240 |
| 112.000 | 5.600 | 560.000 | 0.80 | 2.880 |
| 98.000 | 4.900 | 490.000 | 0.70 | 2.520 |
| 84.000 | 4.200 | 420.000 | 0.60 | 2.160 |
| 70.000 | 3.500 | 350.000 | 0.50 | 1.800 |
| 56.000 | 2.800 | 280.000 | 0.40 | 1.440 |
| 42.000 | 2.100 | 210.000 | 0.30 | 1.080 |
| 28.000 | 1.400 | 140.000 | 0.20 | 0.720 |
| 14.000 | 0.700 | 70.000 | 0.10 | 0.360 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |
