DC12 / DC24 / DC90 V
2000 / 3200 r/min
15 / 25 W
1080 g
IG-71R / IG-70S
CW / CCW
50cm – 50db
-15。C~60。C / RH85%↓
IP545
E
500V/3mA – 60sec
10MΩ>
DM-5025
Rated voltage
Rated R.P.M
Rated output power
Weight
Gear head match
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
Rated R.P.M
Rated output power
Weight
Gear head match
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
| Motor Specifications | ||||||||||||
| Rated voltage | V | 12 | 24 | 90 | ||||||||
| No load R.P.M | R.P.M. | 2000 | 3200 | 2000 | 3200 | 2000 | 3200 | |||||
| Rated power | W | 15 | 25 | 15 | 25 | 15 | 25 | |||||
| Stall torque | kgf-cm | 5.81 | 8.07 | 7.47 | 9.83 | 8.89 | 1.12 | |||||
| No load curent | A | 0.47 | 0.95 | 0.38 | 0.69 | 0.19 | 0.21 | |||||
| Starting current | A | 9.45 | 8.51 | 6.63 | 1.63 | 1.93 | 3.81 | |||||
| Max permisible speed | R.P.M. | 2400 | 3800 | 2400 | 3800 | 2400 | 3800 | |||||
| Max. continuous current | A | 2 | 3.4 | 1.03 | 1.66 | 0.33 | 0.48 | |||||
| Max. continuous torque | kgf-cm | 0.84 | 0.9 | 0.8 | 0.81 | 0.78 | 0.9 | |||||
| Rated voltage max power | W | 22.5 | 37.5 | 22.5 | 37.5 | 22.5 | 37.5 | |||||
| Max efficiency | % | 64% | 63.5% | 63.5% | 65.8% | 58.1% | 66.7% | |||||
| Torque constant | kgf-cm/A | 0.49 | 0.32 | 1.04 | 0.62 | 3.64 | 2.21 | |||||
| Terminal resistance phase to phase | Ohn | 1.27 | 1.41 | 3.62 | 1.47 | 46.5 | 23.6 | |||||
| Terminal inductance between phase | Mh | 1.68 | 0.68 | 6.97 | 2.51 | 117 | 52.4 | |||||
| Speed constant | rpm/V | 166.7 | 266.7 | 83.3 | 133.3 | 22.2 | 35.6 | |||||
| Wout | A | W | allEff | kRPM |
| 50.000 | 8.000 | 200.000 | 1.00 | 3.000 |
| 45.000 | 7.200 | 180.000 | 0.90 | 2.700 |
| 40.000 | 6.400 | 160.000 | 0.80 | 2.400 |
| 35.000 | 5.600 | 140.000 | 0.70 | 2.100 |
| 30.000 | 4.800 | 120.000 | 0.60 | 1.800 |
| 25.000 | 4.000 | 100.000 | 0.50 | 1.500 |
| 20.000 | 3.200 | 80.000 | 0.40 | 1.200 |
| 15.000 | 2.400 | 60.000 | 0.30 | 0.900 |
| 10.000 | 1.600 | 40.000 | 0.20 | 0.600 |
| 5.000 | 0.800 | 20.000 | 0.10 | 0.300 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |

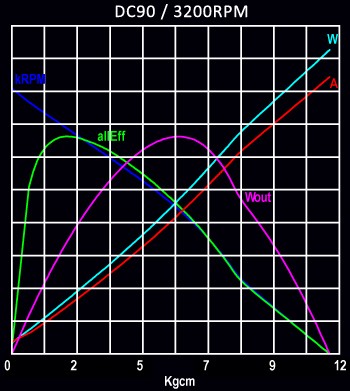

| Wout | A | W | allEff | kRPM |
| 160.000 | 6.000 | 500.000 | 1.00 | 4.000 |
| 144.000 | 5.400 | 450.000 | 0.90 | 3.600 |
| 128.000 | 4.800 | 400.000 | 0.80 | 3.200 |
| 112.000 | 4.200 | 350.000 | 0.70 | 2.800 |
| 96.000 | 3.600 | 300.000 | 0.60 | 2.400 |
| 80.000 | 3.000 | 250.000 | 0.50 | 2.000 |
| 64.000 | 2.400 | 200.000 | 0.40 | 1.600 |
| 48.000 | 1.800 | 150.000 | 0.30 | 1.200 |
| 32.000 | 1.200 | 100.000 | 0.20 | 0.800 |
| 16.000 | 0.600 | 50.000 | 0.10 | 0.400 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |
