DC24 / AC110 / AC220
2500 r/min
100 W
IG-90S
1300 g
CW / CCW
50cm – 50db
-15。C~60。C / RH85%↓
IP545
E
500V/3mA – 60sec
10MΩ>
5RB
Rated voltage
Rated R.P.M
Rated output power
Gear head match
Weight
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
Rated R.P.M
Rated output power
Gear head match
Weight
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
| DC24V AC110V AC220V | ||||
| Driver system match | DBM100W24V DBC110V DBC220V | |||
| Gear head match | IG90 | |||
| Rated R.P.M | r/min | 2500 | ||
| Max speed | r/min | 3000 | ||
| Rated out put | W | 100 | ||
| Rated torque | N/m(kgf-cm) | 0.4(4) | ||
| Start torque | N/m(kgf-cm) | 0.5(5) | ||
| Speed control range | r/min | 150~3000 | ||
| In put | ||||
| Voltage | V | DC24+_10% | AC110+_15% | AC220+_15% |
| Rated current | A | 6 | 3 | 1.8 |
| Max unput current | A | 9 | 6 | 3.6 |
| Rating of R.P.M fluctuation | ||||
| Loading | T | +_0.5% | ||
| Voltage | A | 0.2~4%+_10% | ||
| Temperature | 。C | 0~3%(0~50。C) | ||

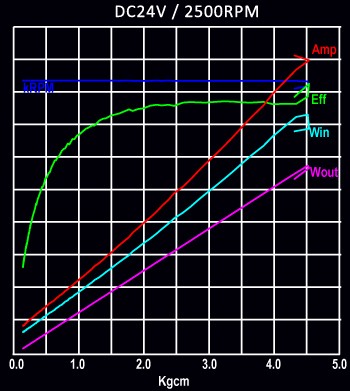

| Wout | A | W | allEff | kRPM |
| 200 | 7.0 | 200 | 1.00 | 3.00 |
| 180 | 6.3 | 180 | 0.90 | 2.40 |
| 160 | 5.6 | 160 | 0.80 | 2.70 |
| 140 | 4.9 | 140 | 0.70 | 2.10 |
| 120 | 4.2 | 120 | 0.60 | 1.80 |
| 100 | 3.5 | 100 | 0.50 | 1.50 |
| 80 | 2.8 | 80 | 0.40 | 1.20 |
| 60 | 2.1 | 60 | 0.30 | 0.90 |
| 40 | 1.4 | 40 | 0.20 | 0.60 |
| 20 | 0.7 | 20 | 0.10 | 0.30 |
| 0 | 0.0 | 0 | 0.00 | 0.00 |
| Wout | A | W | allEff | kRPM |
| 200.000 | 4.000 | 300.000 | 1.00 | 3.300 |
| 180.000 | 3.600 | 270.000 | 0.90 | 2.970 |
| 160.000 | 3.200 | 240.000 | 0.80 | 2.640 |
| 140.000 | 2.800 | 210.000 | 0.70 | 2.310 |
| 120.000 | 2.400 | 180.000 | 0.60 | 1.980 |
| 100.000 | 2.000 | 150.000 | 0.50 | 1.650 |
| 80.000 | 1.600 | 120.000 | 0.40 | 1.320 |
| 60.000 | 1.200 | 90.000 | 0.30 | 0.990 |
| 40.000 | 0.800 | 60.000 | 0.20 | 0.660 |
| 20.000 | 0.400 | 30.000 | 0.10 | 0.330 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |
