AC110 / AC115 / AC220 / AC230
18000 r/min
100 W
1450 g
CW / CCW
50cm – 85db
-15。C~60。C / RH85%↓
IP545
E
1200V – 60sec
20MΩ>
SM-73OP
Rated voltage
Rated R.P.M
Rated output power
Weight
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
Rated R.P.M
Rated output power
Weight
Direction
Noise
Using temp. / humidity
Grade of protection
Insulation class
Voltage resistance
Insulation resistance
| Motor Specifications | ||||||||
| Rated voltage | V | 110 | 115 | 220 | 230 | |||
| No load R.P.M | R.P.M. | 18000 | 18000 | 18000 | 18000 | |||
| Rated power | W | 100 | 100 | 100 | 100 | |||
| Stall torque | kgf-cm | 4.6 | 4.6 | 4.7 | 4.7 | |||
| No load curent | A | 1 | 0.9 | 0.5 | 0.45 | |||
| Max permisible speed | R.P.M. | 19800 | 19800 | 19800 | 19800 | |||
| Max. continuous current | A | 1.69 | 1.6 | 0.84 | 0.8 | |||
| Max. continuous torque | kgf-cm | 0.85 | 0.85 | 0.85 | 0.85 | |||
| Rated voltage max power | W | 150 | 150 | 150 | 150 | |||
| Max efficiency | % | 63% | 63% | 67% | 68% | |||
| Speed constant | rpm/V | 163.6 | 156.5 | 81.8 | 78.3 | |||

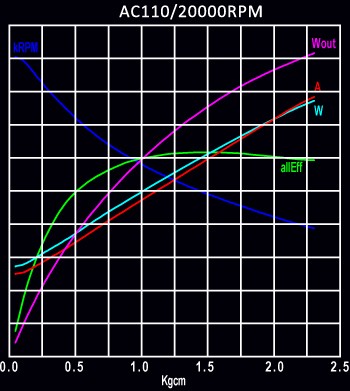

| Wout | A | W | allEff | kRPM |
| 200.000 | 4.000 | 400.000 | 1.00 | 20.000 |
| 180.000 | 3.600 | 360.000 | 0.90 | 18.000 |
| 160.000 | 3.200 | 320.000 | 0.80 | 16.000 |
| 140.000 | 2.800 | 280.000 | 0.70 | 14.000 |
| 120.000 | 2.400 | 240.000 | 0.60 | 12.000 |
| 100.000 | 2.000 | 200.000 | 0.50 | 10.000 |
| 80.000 | 1.600 | 160.000 | 0.40 | 8.000 |
| 60.000 | 1.200 | 120.000 | 0.30 | 6.000 |
| 40.000 | 0.800 | 80.000 | 0.20 | 4.000 |
| 20.000 | 0.400 | 40.000 | 0.10 | 2.000 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |

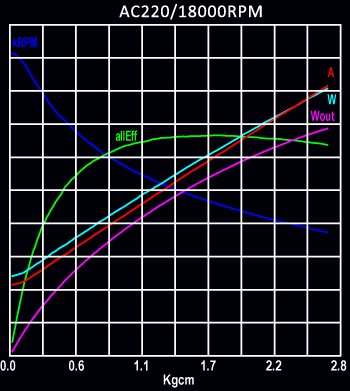

| Wout | A | W | allEff | kRPM |
| 300.000 | 2.000 | 400.000 | 1.00 | 20.000 |
| 270.000 | 1.800 | 360.000 | 0.90 | 18.000 |
| 240.000 | 1.600 | 320.000 | 0.80 | 16.000 |
| 210.000 | 1.400 | 280.000 | 0.70 | 14.000 |
| 180.000 | 1.200 | 240.000 | 0.60 | 12.000 |
| 150.000 | 1.000 | 200.000 | 0.50 | 10.000 |
| 120.000 | 0.800 | 160.000 | 0.40 | 8.000 |
| 90.000 | 0.600 | 120.000 | 0.30 | 6.000 |
| 60.000 | 0.400 | 80.000 | 0.20 | 4.000 |
| 30.000 | 0.200 | 40.000 | 0.10 | 2.000 |
| 0.000 | 0.000 | 0.000 | 0.00 | 0.000 |
